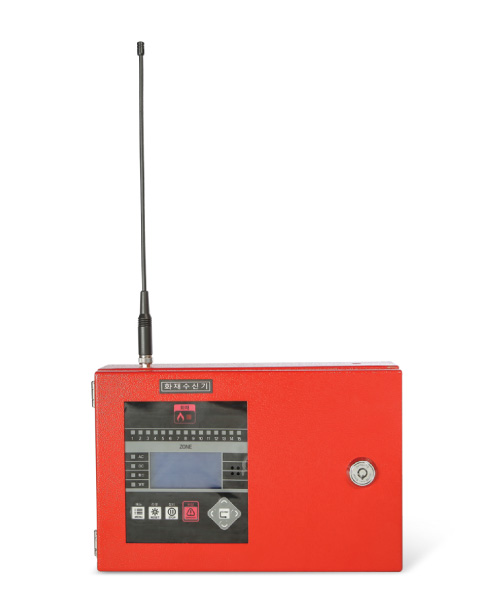

Wireless Main Control Panel (ZWMCP)
Outline
The ZENESIS wireless fire detection system uses a reliable wireless protocol between the local wireless device and wireless receiver to provide a safe and effective wireless fire system.
Based on approved wireless communication components, all components including a fire detector, alarm siren and smoke detector are intelligently integrated into wireless technologies and provide an addressable wireless fire detection system.
It also operates in conjunction with the ZFAS VIEW monitoring platform to provide fast and clear monitoring system of fire and device status.
The ZENESIS Wireless Fire Detection System is designed to comply with the technical standards of the Korea Radio Waves Act and National Fire Services Act.
PDF Download
Estimate
ListCharacteristics
- 450 monitor devices addressable
- Long distance wireless communication
(more than 500m / open space)
- Back-up power
- Alarm of communication, power, sensor
- Alarm control(Wireless siren, wireless transmitter)
- Compatibility with the wired fire detection system
- Mobile phone text alarm(V2)
- Meeting the requirements of the Radio Waves Act and the National Fire Service Act
- Automatic and manual wireless communication status check
- Wireless Fire Detector Remote Reset
Advantage
- Easy operation program
- Economic system implementation cost
- A wide range of compatible systems
- Minimization of property damage
- Short period of system construction period
- Remote monitoring and system management
Explanation
| Specifications | |
|---|---|
|
Model |
ZWMCP |
| Product | Wireless Main Control Panel |
| Power | AC220V / 60Hz |
| Current | 90mA |
| AC FUSE | 2A |
| Backup Power | DC 12V / 1.2A / One |
| DC FUSE | 2A |
| Circuit Quantity | 15 CH 450 ADDRESS |
| Output | Siren / N.O / DC12V / RS232 / CDMA(V1) |
| Storage | 999 |
| Input | Fire / Power / Communication / Sensor error |
| RF | 447Mhz / 10dBm / 2GFSK / 500M |
| Environment | -10 ~ 50°C / 90% |
| Materials | STELL 1.2T / RED |
| Size / Weight | 200(H)*300(W)*80(D) / 3.3kg |
| Connection Device | ZENESIS SYSTEMS |
| Certification | KC |

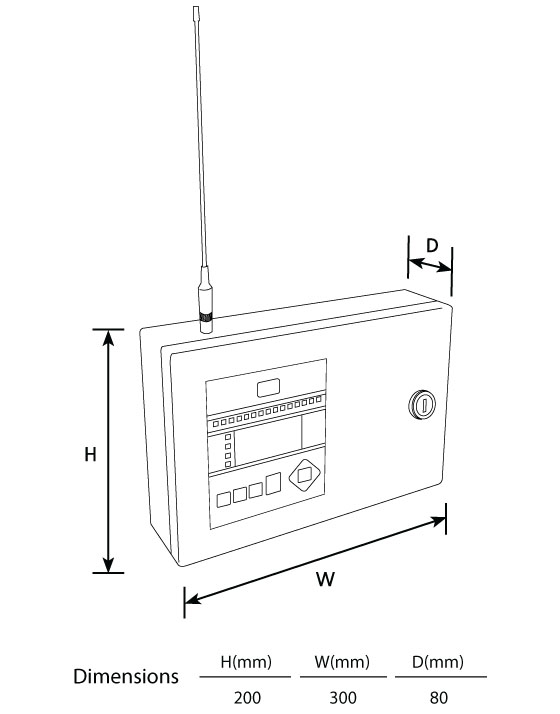

Exterior size

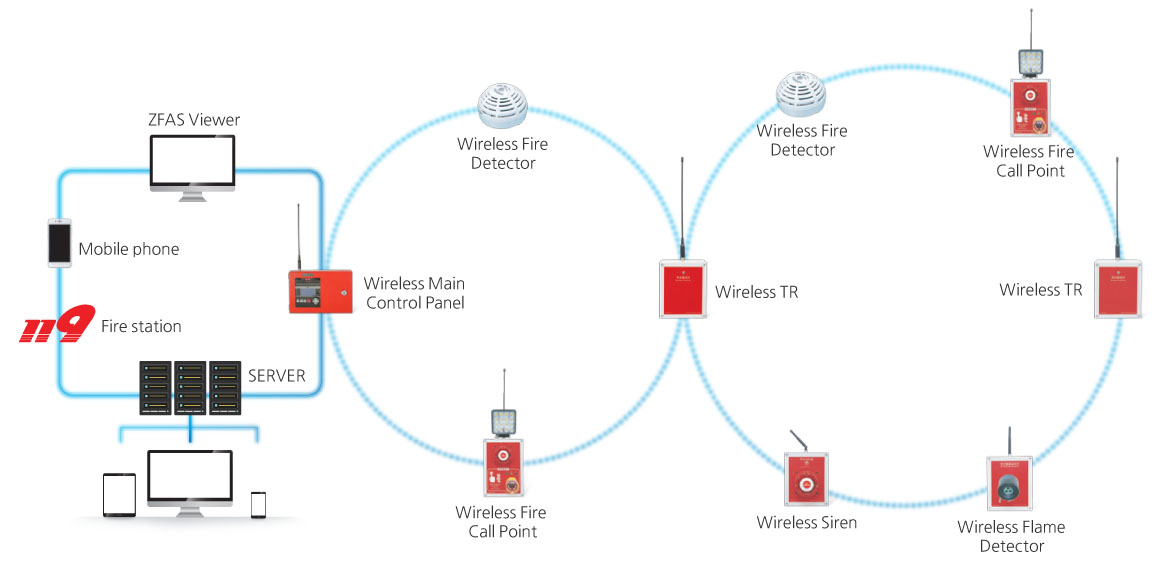

RF Wireless Fire Detection System
