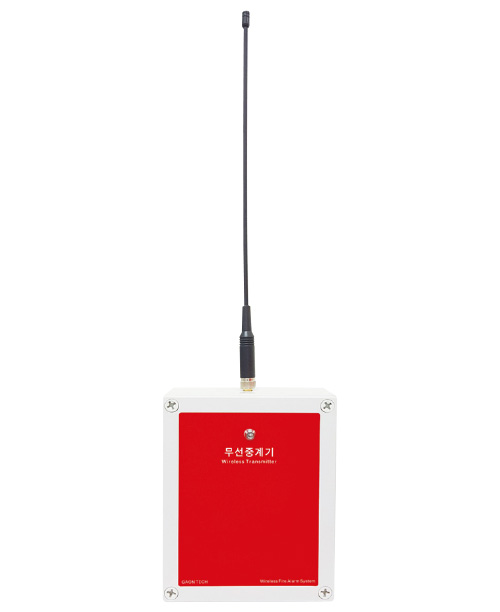

Wireless TR (ZWR)
Outline
ZENESIS wireless repeater enables monitoring and control of the wireless device beyond the range of wireless receiver.
Each wireless repeater increases the reliability of the wireless communication through the MESH type wireless network and enables the limitless use of the additional addressing and wireless device. It enables a more convenient wireless system configuration.
The reliable wireless communication instantly operates in the event of the power failure to alert for an error signal.
The ZENESIS wireless repeater is designed to comply with the technical standards of the Korea Radio Waves Act and National Fire Services Act.
Each wireless repeater increases the reliability of the wireless communication through the MESH type wireless network and enables the limitless use of the additional addressing and wireless device. It enables a more convenient wireless system configuration.
The reliable wireless communication instantly operates in the event of the power failure to alert for an error signal.
The ZENESIS wireless repeater is designed to comply with the technical standards of the Korea Radio Waves Act and National Fire Services Act.
PDF Download
Estimate
ListCharacteristics
- Long distance wireless communication (more than 1km / open space)
- Two-way radio communication
- Back-up power
- Individual alarm for each communication device, power, and repeater
- Meeting the requirements of the Radio Waves Act and the National Fire Service Act
Advantage
- Expansion of wireless communication coverage
- Convenient installation and mobility
- Economic system implementation cost
- Minimization of property damage
- Short period of system construction
Explanation
| Specifications | |
|---|---|
|
Model |
ZWR |
| Product | Wireless TR |
| Power | AC220V / 60Hz |
| Current Consumption | 30mA |
| Backup power | DC 3V / 2.4A / One |
| Status check | Fire / Power / Communication |
| RF | 447Mhz / 10dBm / 2GFSK / 500M |
| Environment | -10 ~ 50℃ / 90% |
| Materials | PC / 2T / IVORY |
| Size / Weight | 180(H)*150(W)*60(D) / 0.5kg |
| Connection device | ZENESIS SYSTEMS |
| Certification | KC |
※ Caution
The power supply is very important for the product performance and safety; ensure the rated power and correct battery before use.

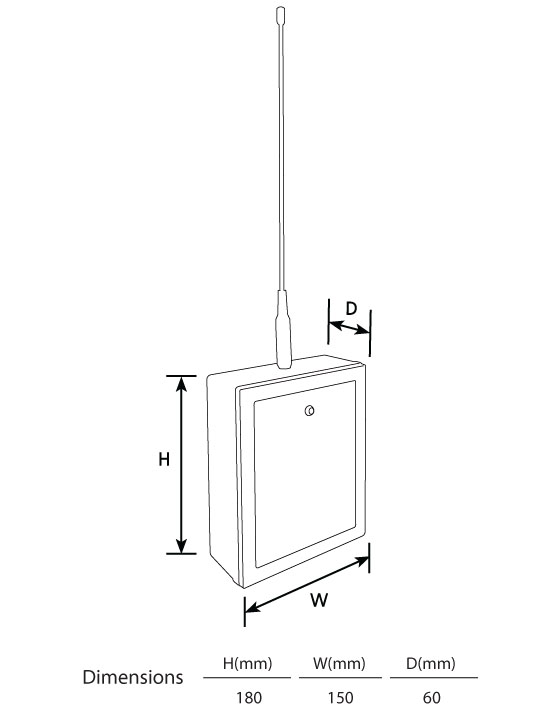

Exterior size

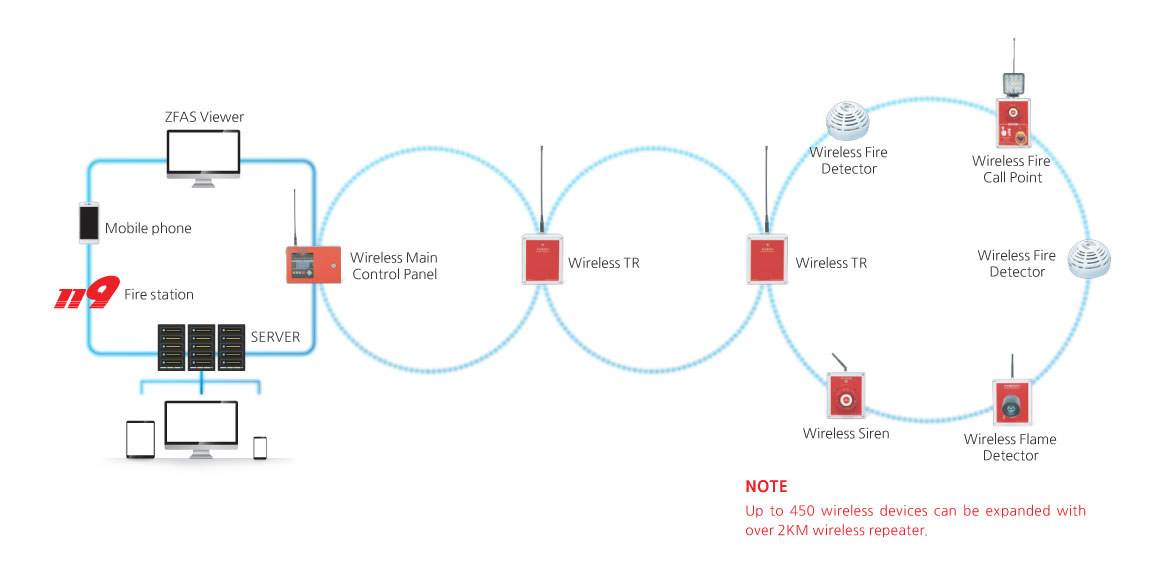

RF Wireless TR System
