Wireless CCTV (ZWCS)
Outline
ZENESIS Wireless CCTV is a video monitoring solution for safety management activities of construction, civil work and industrial site.
Firearm in a certain place and dangerous operation in the process can be monitored in realtime to realize a safe workplace.
Unlike the wired CCTV system, it is convenient to move and install using the built in battery power and LTE wireless communication technology without being physically constrained by piping and wiring. It can interact with the fire sensor and human body sensor while the real-time alarm and recording system works using mobile phone or PC.
Firearm in a certain place and dangerous operation in the process can be monitored in realtime to realize a safe workplace.
Unlike the wired CCTV system, it is convenient to move and install using the built in battery power and LTE wireless communication technology without being physically constrained by piping and wiring. It can interact with the fire sensor and human body sensor while the real-time alarm and recording system works using mobile phone or PC.
PDF Download
Estimate
ListCharacteristics

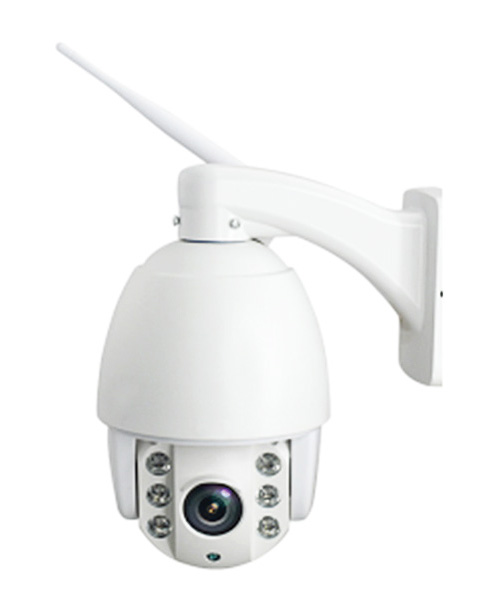

- High-quality LTE wireless CCTV
- Remote control and verification
- Video security
- Battery power system
- Convenient portable system
- Recording and saving
- Real time monitoring of mobile phone and PC
Advantage
- Fire and security interlocking recording function
- Real time monitoring
- Nighttime monitoring
- Remote control
- 5 times optical 3 times digital
- Waterproof and dustproof function
- Convenient mobility and economy
Explanation
| Specifications | |
|---|---|
| Model |
ZWCS |
| Product | Wireless CCTV |
| Power | AC220V / DC12V * 45A(48 hours) |
| Current Consumption | 0.5A |
| RF | LTE 4G |
| Component | CCTV / Tripod / Battery pack / Charger / Hard case |
| Storage capacity (option) |
32G(One week) |
| Camera | SONY 322 1/3” CMOS |
| Environment | -10 ~ 50°C / 90% |
| Materials | AL / Carbon |
| Size / Weight | 2000(H) * 250(W) / 25Kg (including battery bag) |
| Sensor(optional) | Fire / Human body / Door |
| Certification | KC |
※ Caution
The power supply is very important for the product performance and safety; ensure the correct charger and battery before use.

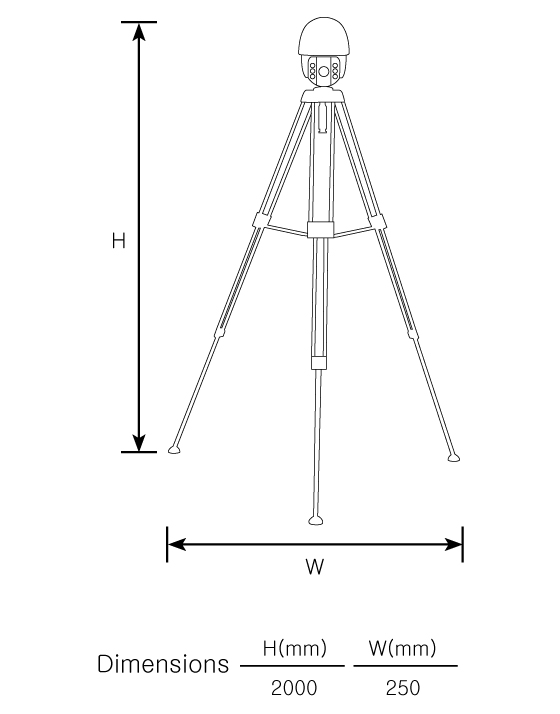

Exterior size

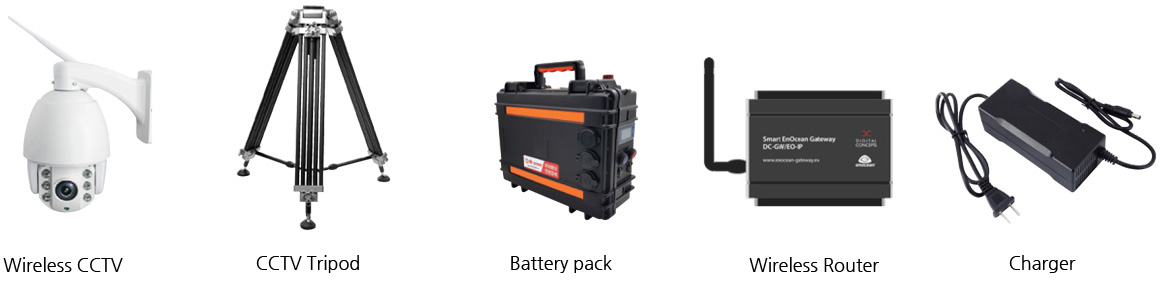

Main Components
