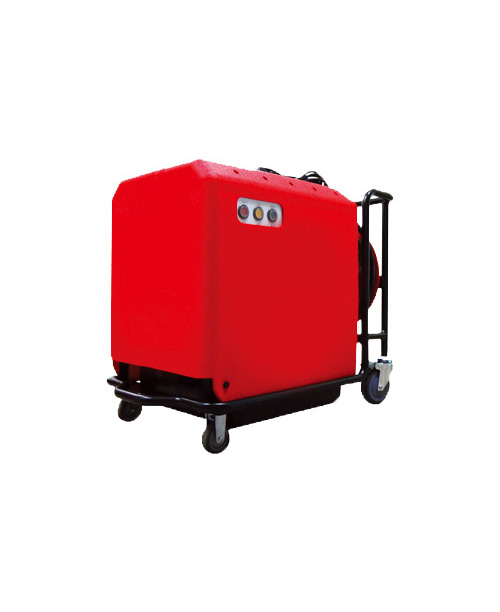

Portable fire hydrant system (ZAQ-FT)
Outline
It is an integrated portable fire hydrant system that can control the early stage of fire emergency in the construction or industrial site not equipped with the complete fire extinguishing system.
It is a aerosol fire suppression system applicable to general fire, oil and electric fire, minimizing the damage by water, portable and extinguishable by self-power; it is an effective portable fire hydrant system to control the early stage of fire suppressing in different places..
In addition, the dual spray nozzle can be easily convertible between direct spraying and aerosol fire suppression, depending on the fire type; it is also easy to use for anyone such as a woman or elderly.
It is a aerosol fire suppression system applicable to general fire, oil and electric fire, minimizing the damage by water, portable and extinguishable by self-power; it is an effective portable fire hydrant system to control the early stage of fire suppressing in different places..
In addition, the dual spray nozzle can be easily convertible between direct spraying and aerosol fire suppression, depending on the fire type; it is also easy to use for anyone such as a woman or elderly.
Characteristics
- Integrated fire extinguishing system
- Safe and simple to use
- Battery power system (FT-3/5)
- Convenient mobility and scalability
- Various fire applicability(Fire suppression/Cleaning)
Advantage
- ABC fire usable
- Convenience of hose expansion
- Convenient portability
- Easy management
Explanation
Specification | |||
---|---|---|---|
Model |
ZAQ-FT-3/5 |
ZAQ-FT-10 |
ZAQ-FT-13-G |
Power |
AC220V / Single-phase |
AC380V / Three-phase |
Gasoline Engine |
Power | 3/5HP |
10HP |
13HP |
Flow rate | 13/20LPM |
30LPM |
30LPM |
Water source | 35L |
70L |
70L |
Water Pressure | 70~100BAR |
||
Nozzle | Direct / Injection Dual Nozzle |
||
Hose length | 20M |
30M |
30M |
Weight | 90Kg |
155Kg |
155Kg |
Size (cm) | 90*52*71 |
120*75*95 |
120*75*100 |

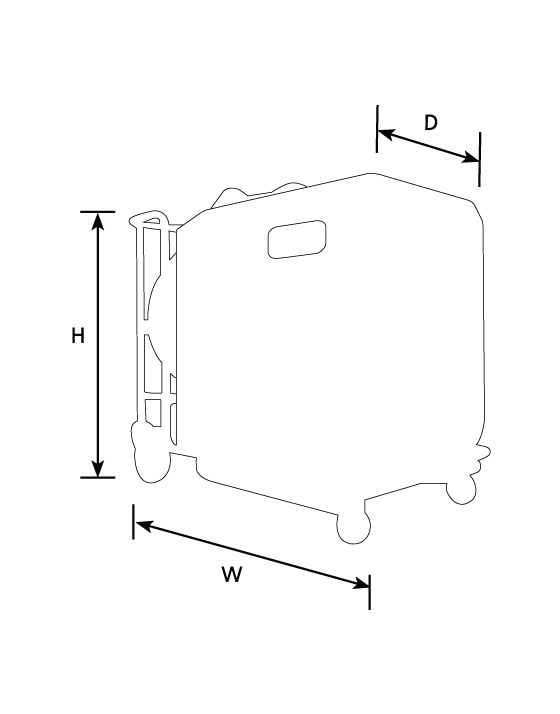

Exterior size
